Technical specification

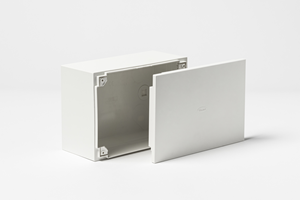

Connection boxes 40 in
halogen free
Description
Use
- Indoor applications.
- Surface mounted connection boxes on walls and ceilings for wiring of power and communication cables.
- Compatible with any common cable management system on the market : trunking, pipes and cables.
- Possibility of surface mounting in corners and ceilings. The design of the connection boxes allows the cover to be mounted and dismounted in hard-to-access installations.
Installation
- External lid and fittings are pressured mounted. Removable only with the aid of a tool.
- Screws can be inserted into the cover if desired. Drilling is easy using the marks found on each corner of the inside of the cover. The necessary screws are not supplied with the product. DIN 7981 2.9x13 screws are recommended.
- Smooth walls allow access cuts to be made freely, depending on the ducting installed.
- The design ensures the robustness of the connection box, even after the entry/exit openings have been made.
- The small boxes have slots in the base to integrate channels 78 and 73 and have through holes for Ø4mm drill bits to facilitate wall mounting.
- The 110x150x65 box is blind at the base to allow suspended mounting on the sides of 73 ducts and 66 trays, ensuring the degrees of protection.
- The orientation of the holes allows the connection box to be aligned during assembly.
Design
- White colour
- Homogeneidad de color con las gamas de canales Unex.
- The heights of the junction boxes correspond to the heights of the Unex 78 and 73 conduits.
- It can be painted offering a wide range of possible surface treatments and their integration into the environment.
Mounting instructions
- To fulfil the characteristics defined herein, the installation must be carried out in accordance with the manufacturer`s assembly instructions provided in the main product packaging and are also available on the website www.unex.net.
Characteristics
|
Raw material
|
|
|---|---|
|
Connection boxes
|
U48X (See technical data for raw material).
|
|
Applications
|
|
|---|---|
|
Applications
|
Indoor installations.
|
|
2011/65/EU Directive
|
|
|---|---|
|
RoHS II Compliant
|
Compliant.
|
|
EN 60670-22:2006
|
|
|---|---|
|
Raw material
|
Insulating
|
|
Type of installation: surface mounting
|
Walls, ceilings, floors or furniture.
|
|
Types of entry/exit
|
|
|
Types of fixing cable / tubes
|
Without fixing system
|
|
Minimum installation temperature
|
-25 ºC
|
|
Protection against access to hazardous parts and against solid foreign objects according to IEC 60529 with a minimum IP2X
|
IP4X
|
|
Protection against ingress of water according to IEC 60529
|
IPX0
|
|
Fixing elements are included with the boxes
|
Boxes designed for any other system.
|
|
Means of fixing conexión terminals or wiring devices on the connection boxes.
|
Without fixing ( for conexion terminals and for floating connector units).
|
|
EN 50085-2-1:2006 + A1:2011
|
|
|---|---|
|
Raw material characteristics
|
Non metallic
|
|
Prevention of contact with liquids
|
Not applicable
|
|
Resistance to flame propagation
|
Non-flame propagation.
|
|
Electrical insulation characteristics
|
With electrical insulating characteristic.
|
|
Electrical continuity
|
Without electrical continuity characteristic.
|
|
Resistance against mechanical damage
|
|
|
Protection degree assured by the enclosure
|
IP4X. Mounted on wall or ceiling
|
|
Retention of the system access cover
|
Access cover that can only be removed with tools.
|
Characteristics
Raw material
Connection boxes:
U48X (See technical data for raw material).
Applications
Applications:
Indoor installations.
2011/65/EU Directive
RoHS II Compliant:
Compliant.
EN 60670-22:2006
Raw material:
Insulating
Type of installation: surface mounting:
Walls, ceilings, floors or furniture.
Types of entry/exit:
- Without entries
- Entry/exit openings can be made during mounting
Types of fixing cable / tubes:
Without fixing system
Minimum installation temperature:
-25 ºC
Protection against access to hazardous parts and against solid foreign objects according to IEC 60529 with a minimum IP2X:
IP4X
Protection against ingress of water according to IEC 60529:
IPX0
Fixing elements are included with the boxes:
Boxes designed for any other system.
Means of fixing conexión terminals or wiring devices on the connection boxes.:
Without fixing ( for conexion terminals and for floating connector units).
EN 50085-2-1:2006 + A1:2011
Raw material characteristics:
Non metallic
Prevention of contact with liquids:
Not applicable
Resistance to flame propagation:
Non-flame propagation.
Electrical insulation characteristics:
With electrical insulating characteristic.
Electrical continuity:
Without electrical continuity characteristic.
Resistance against mechanical damage:
- IK08
- IK07: 70x70 y 85x85 Connection boxes
Protection degree assured by the enclosure:
IP4X. Mounted on wall or ceiling
Retention of the system access cover:
Access cover that can only be removed with tools.
Characteristics of U43X raw material
- Base raw material: 100% recycled halogen free thermoplastic component (1)
- Halogen contents according to EN 50642: 2018: Halogen free
- Phthalate contents according to ASTM D2124-99:2004: <0,01% (2)
- Dielectric strength according to IEC 60243-1:2013:
18±5 kV/mm
Test sample thickness 2,0 mm. - Reaction to fire according to NF F 16-101:1998: Class F2
- UL flammability tests on plastic materials according to ANSI/UL 94: 1990:
Degree UL94: V0
Test sample thickness 3,2 mm - L.O.I. Oxygen index according to EN ISO 4589:1999:
(Concentration %) =32±3
Test sample thickness 3,2 mm - Coefficient of linear expansion: 0,07 mm/°C m. (3)
- Behaviour to chemicals exposure:
It is resistant to the majority of:
- Oils (mineral, vegetable and paraffins)
- Diluted acids
- Fatty acids
- Alcohols
- Carbonates, Phosphates, Nitrates, Sulphates and other saline solutions
- Aliphatic hydrocarbons
- Diluted hydroxides
However, it is not resistant to the majority of:
- Amines
- Ketones
- Phenols
- Aromatic hydrocarbons (3)
Notes
1. Value corresponding to the last 5 years, subject to availability.
2. Detection limit for the analytical technique applied.
3. All features marked are based on random tests of the material in the manufacture of our products. However, they only reflect the values accepted by the raw material manufacturers, which are provided only as information and guidance.
